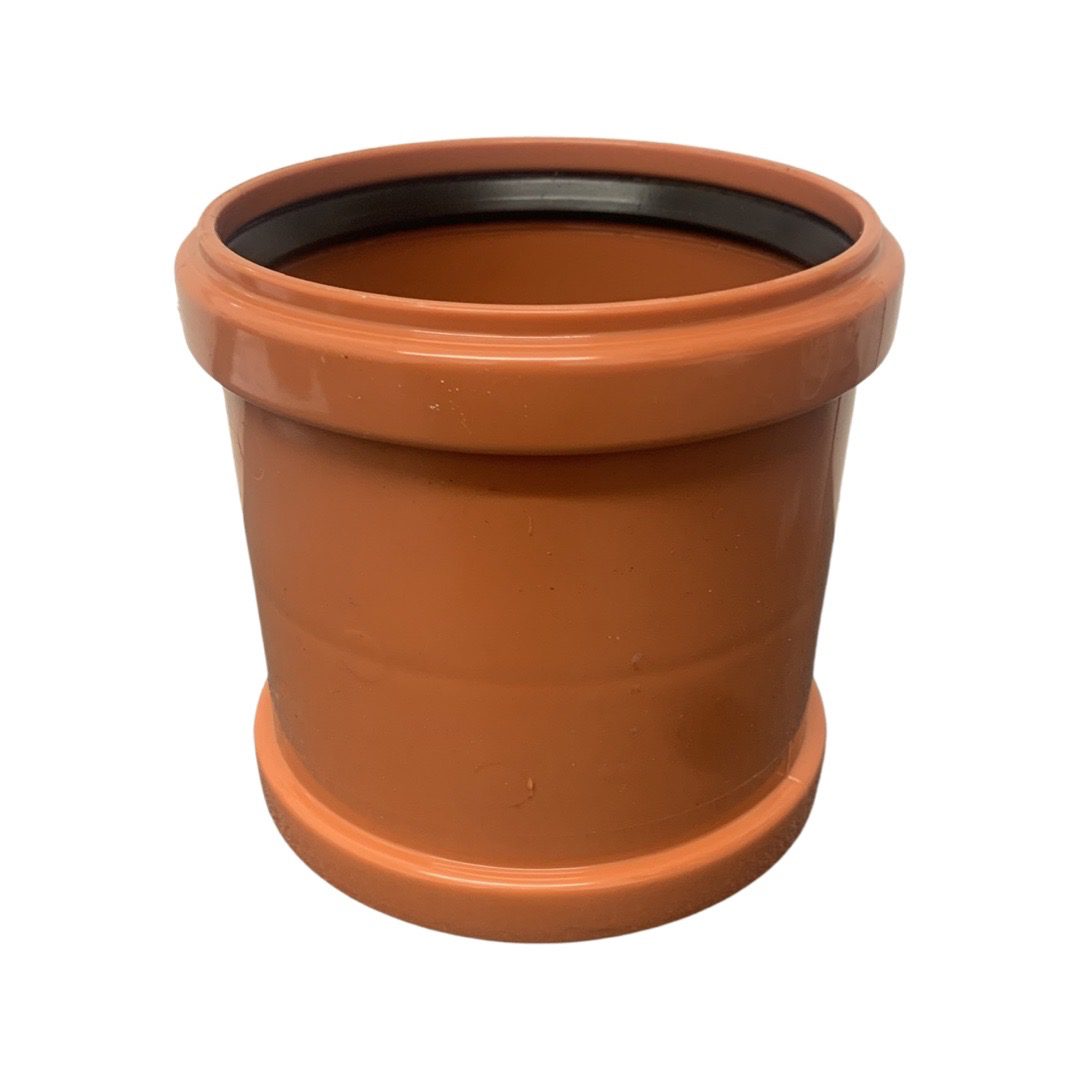

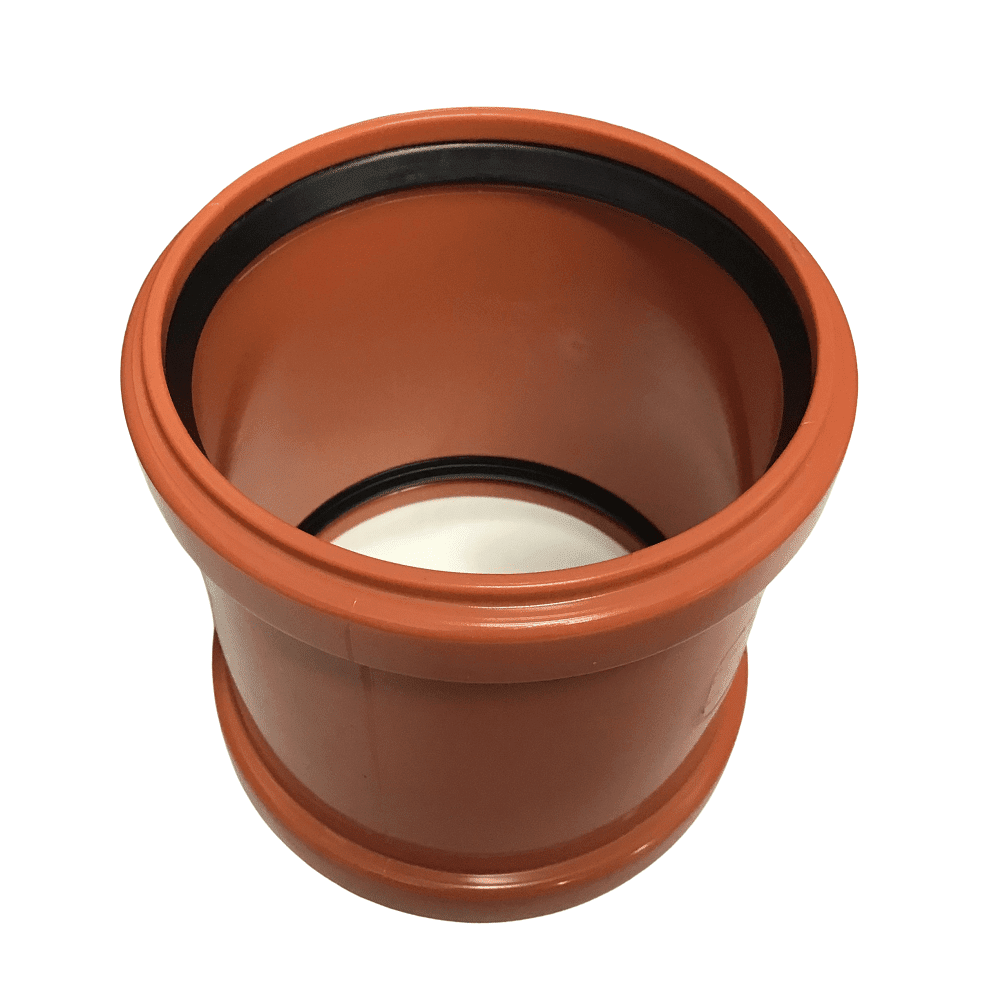

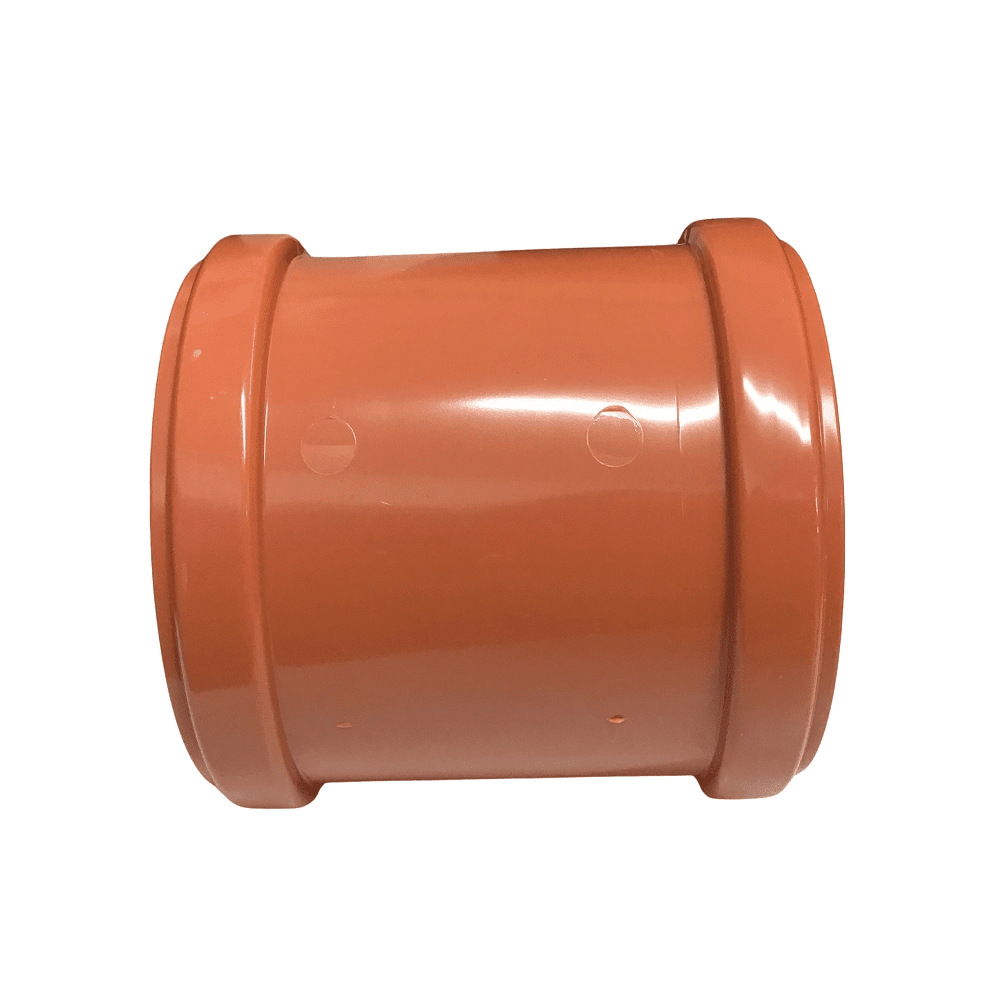

Funke Slip Coupler Underground 110mm

Funke Slip Coupler Underground 110mm

Funke Slip Coupler With the red-brown Underground Drainage Pipe (UG) SN 8 – compact design in the nominal diameters DN/OD 110, we offer a solid-wall pipe made out of PVC-U.

This pipe is suitable for the drainage of domestic and industrial waste water outside the building.

Moreover, the Underground Drainage Pipes have a ring stiffness of SN 8 (≥ 8 kN/m2), and the outer diameter / wall thickness ratio meets SDR 34.

The material is temperature resistant up to 60° C for short periods, respectively up to 40° C in permanent load.

The dimensions comply with EN 13476-2 respectively EN 1401-1.

• The advantages in practice:
• Low weight
• Easy installation
• Resource-saving
• Temperature-resistant according to EN 476
• Pipes SDR 34/SN 8

Technical Data

Nominal diameter: DN/OD 110
SDR-Class: SDR 34
SN-Class: SN 8
Sealing system: BL-sealing
Colour: RAL 8023 (red-brown)
Material: PVC-U (unplasticized)
Installation guideline: EN 1610 / according to the manufacturer’s instructions
Area of use: Foul sewer pipelines, Combined sewer pipelines, Storm sewer pipelines, Ventilation ducts
Installation conditions: 0.8 m – 6.0 m / SLW 60 (HA20)
Special characteristics: resistance range: pH 2-12, recyclable thanks to material purity
